bell marine

Viper Pro Series Winch Wiring Loom For 1000 Winch – Boats Up To 6 Mtrs

Viper Pro Series Winch Wiring Loom For 1000 Winch – Boats Up To 6 Mtrs

Regular price $302.00 AUD
Regular price Sale price $302.00 AUD
Sale Sold out

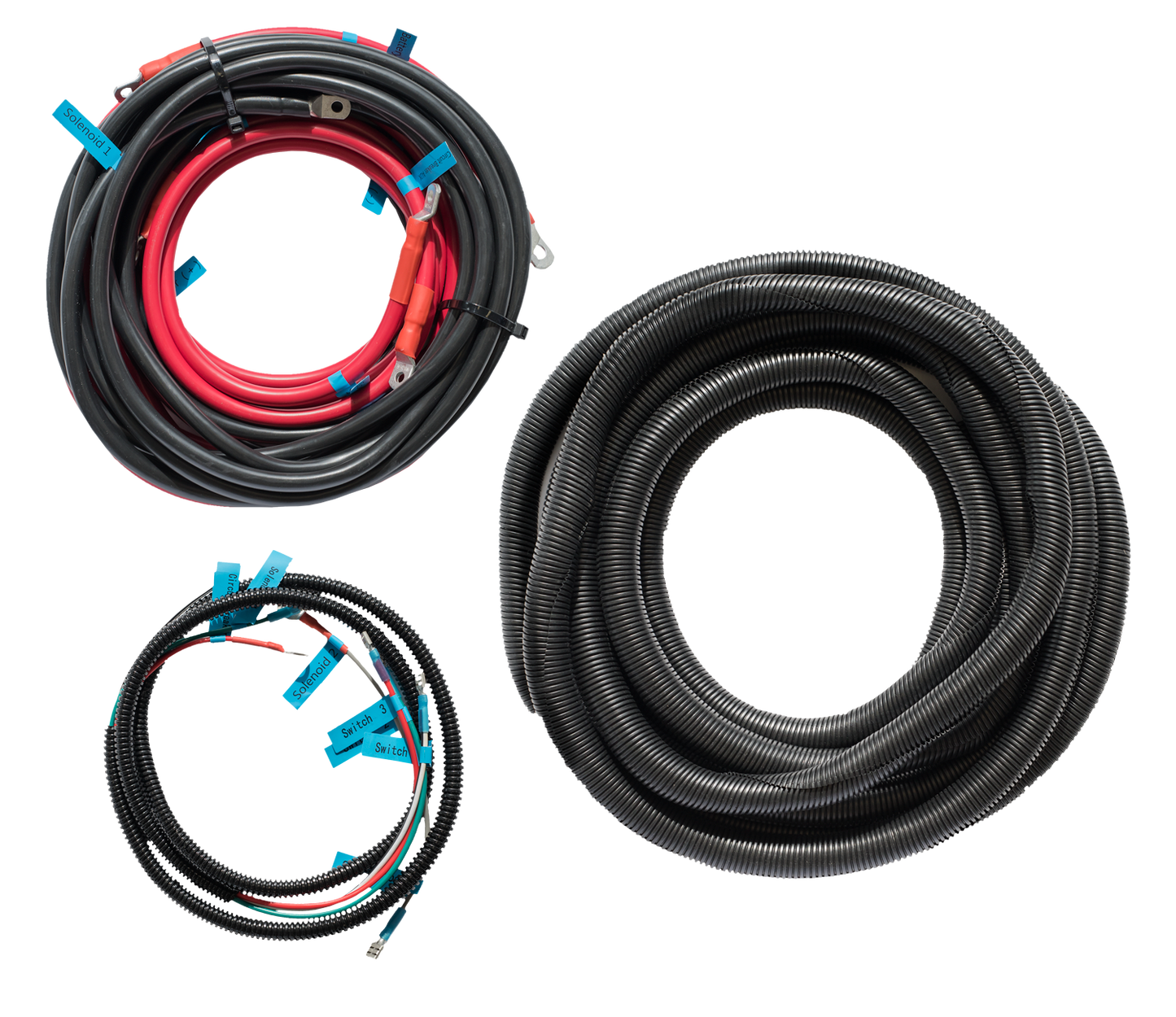

We only use marine grade 3 B&S (25mm2) tinned copper wire, blind tinned copper lugs, silicone impregnated marine heat shrink and each connector is labelled for ease of installation. Every loom includes flexible conduit for ease of installation and your 1.5M switch loom is also included.  Simply connect “A” to “A” and ”B” to “B” without the need to refer to your wiring diagram and your winch will come to life.

Positive Cable:                                                                      Negative Cable

Battery to Circuit Breaker:     4.5M                                 Battery to Solenoid:                5.5M

Circuit Breaker to Solenoid:   1.0M                                 Not Applicable

Solenoid To Winch Motor:     2.5M                                 Solenoid to Winch Motor:     2.5M

  • Please note that Switch Looms are 1.5M in length and should suit most boat.
  • Viper Winch Motors are fitted with 1 M of 3B&S cable totaling  3.5 M from Solenoid to Winch Motor
  • Please note We have tried to accommodate for almost all boats up to 6.0M, however we cannot guarantee that one size fits all.
  • WARNING: Install your Viper winch and loom into the boat before you start to fit any other components! You may need to relocate them to suit cable lengths and individual boats.
